EDM Enclosures
Electrical discharge machining is more sensitive to its surroundings than most other machining processes. Shifts in temperature, dust and other fine particles, and even vibration can all affect accuracy, and therefore part quality. What’s more, sinker EDM machines use flammable fluids, and this process in turn produces fumes that need to be extracted. Unfortunately, these aren’t problems that you can safely ignore, at least for long.
A modular EDM enclosure can help you on all fronts. For one, it creates a more stable environment around the machine, while also containing fumes and reducing the fire risks that come with the process. At MachineEnclosure.com, we design and build enclosures for both sinker and wire EDM machines, each one engineered around your specific equipment and layout.
What an EDM Enclosure Does for You
Temperature Stability
Temperature swings expand or contract both machine and material, which affects accuracy. Enclosures with HVAC keep conditions tight and control humidity to prevent static.
Fire Safety
Sinker EDM machines use flammable hydrocarbon-based dielectric oils that can ignite if fluid runs low or temperatures spike. Enclosures add a layer of safety and can integrate fire suppression systems.
Fume & Air Quality
EDM fumes pose a health risk for operators with prolonged exposure. Enclosures can be created both with ventilation and extraction systems to remove fumes and keep the air clean on both sides of the wall.
Contamination Control
Dust and other particles that reach the dielectric fluid or workpiece can affect quality. Enclosures help limit what gets inside, keeping the process cleaner and more consistent.
Noise Reduction
EDM machines are quieter than CNC equipment, but noise still adds up across multiple units. Enclosures can be equipped with special sound-dampening panels to reduce noise levels if need be.
Roll-Up or Sliding Doors
Clear viewing panels
LED lighting
HVAC systems
Fire suppression integration
Custom colors, finishes, and branding
Ventilation & fume extraction systems
Sound-dampening wall panels & other soundproofing options
Why Modular is Best for EDM Enclosures
Permanent construction can also work, but we think that modular is a much better choice. To illustrate, say your equipment changes or your floor plan needs to shift. With a permanent room it’s impossible to adapt.
Modular EDM enclosures are much more practical for a variety of reasons:
Fast Installation
Modular panels are built off site and assembled on location. Most enclosures go up in a few days, and there’s no need to halt or disrupt the rest of your operations. With traditional construction, you can expect it take weeks or months.
Flexibility
As we alluded to already, if you add machinery, rearrange your floor, or need to relocate the enclosure, modular panels can be taken apart and reconfigured. There’s no need to tear down walls and start over.
Lower costs
The upfront cost is typically less than traditional construction, and because the panels are reusable, you’ll also get better value over time.
Why Work With Us
We’ve been building enclosures for manufacturers for over 35 years. We’re not a general contractor who happens to build enclosures; this is what we do.

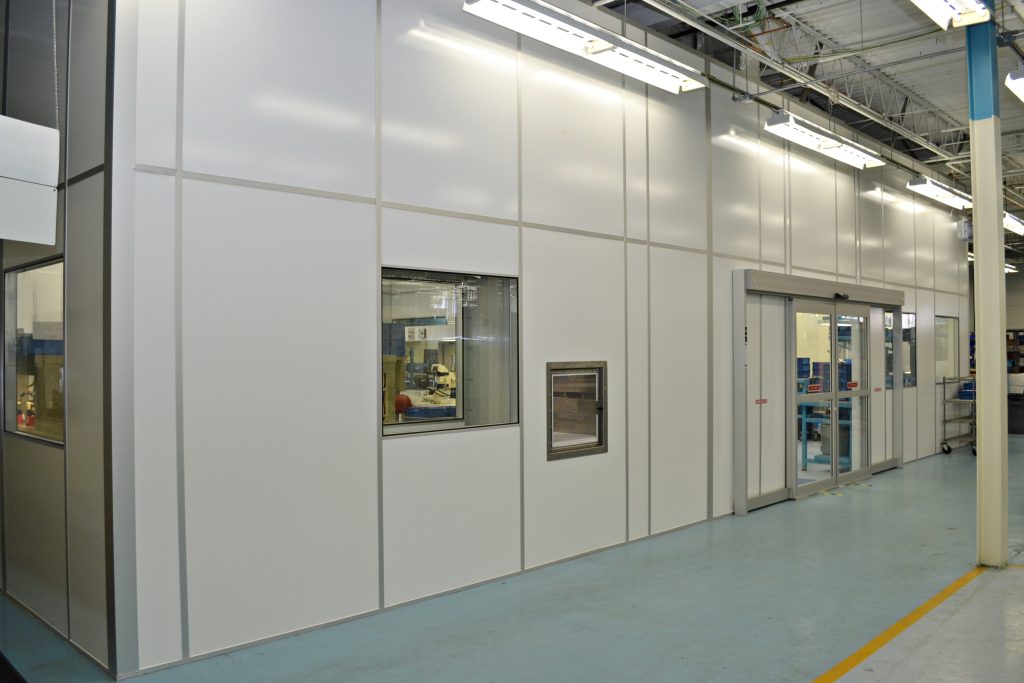

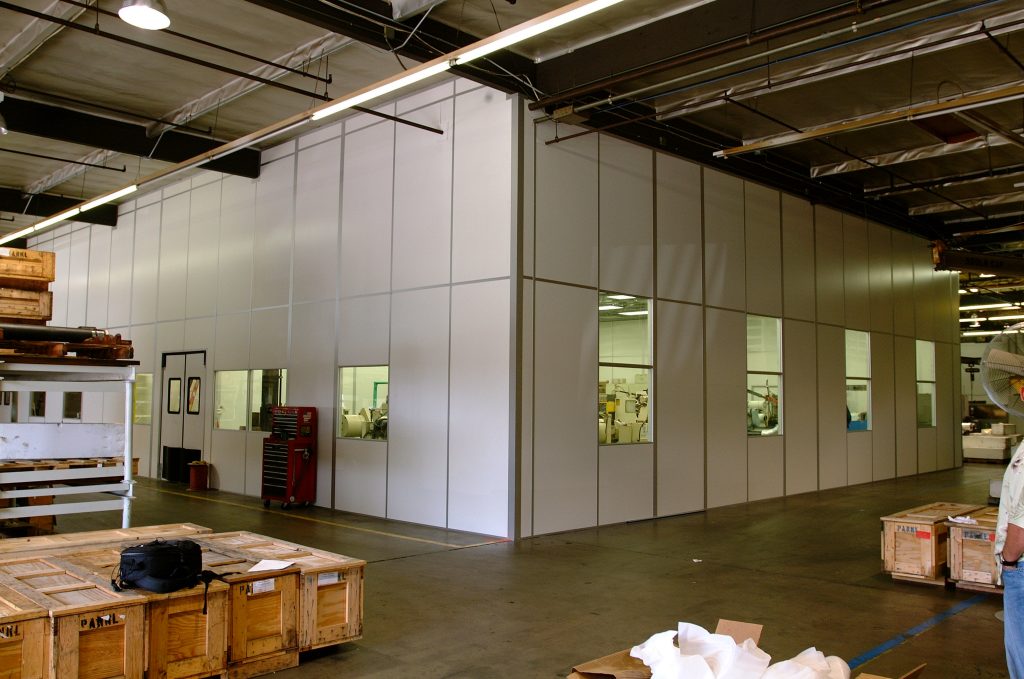

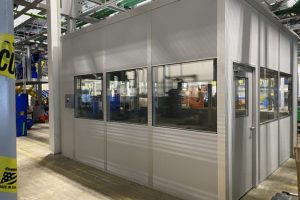

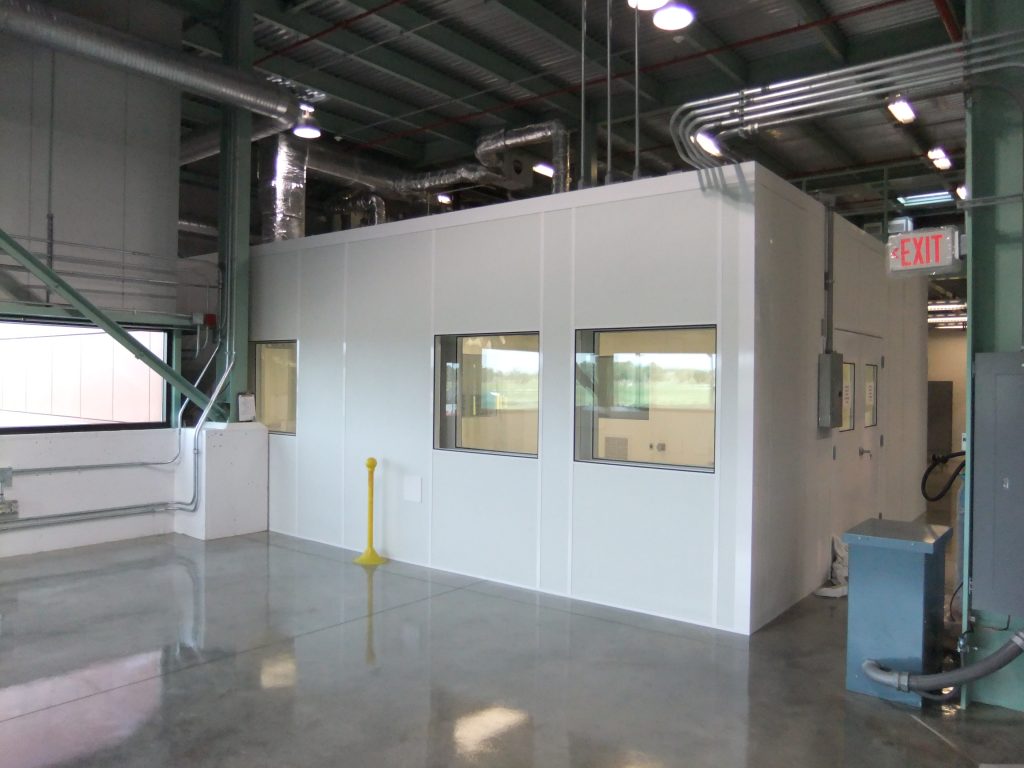

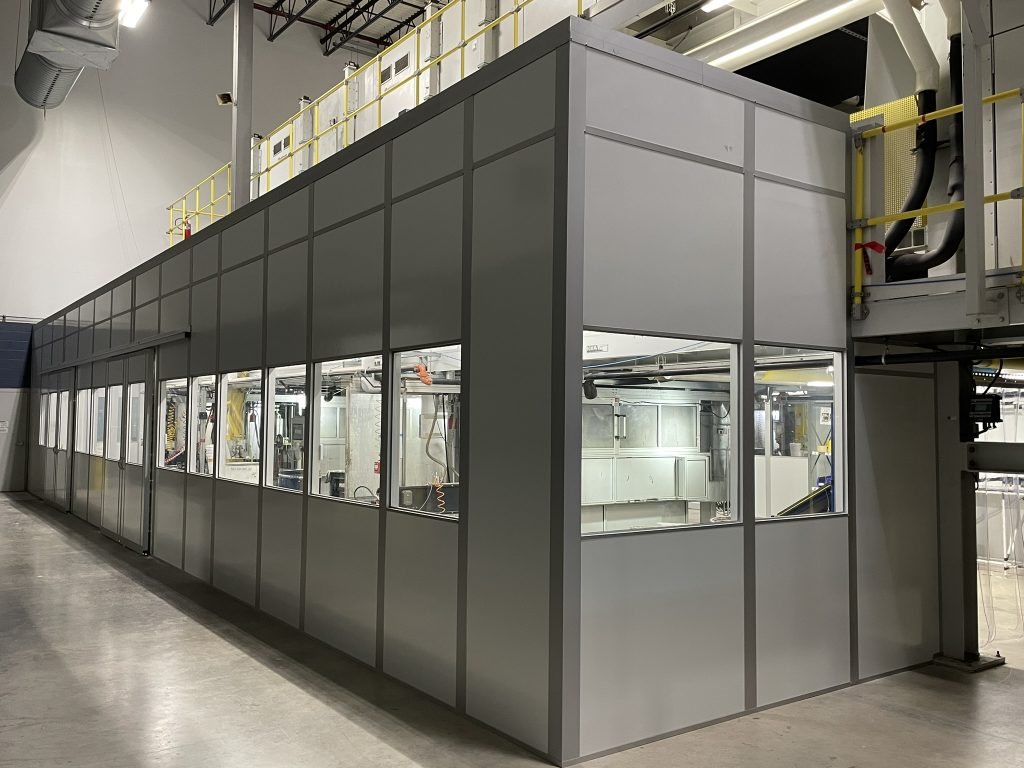

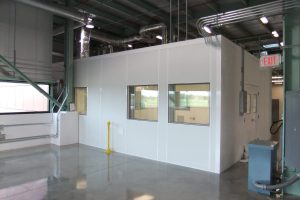

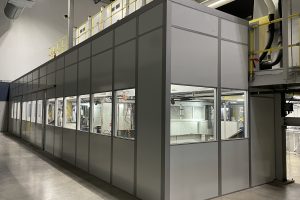

One specialty, and every photo here proves it:
Get a Quote
Every project starts with a conversation. Tell us what EDM machines you're running, what your facility looks like, and what challenges you're dealing with. We'll design an enclosure that fits your setup.
Download brochureFAQs About EDM Enclosures
What makes EDM enclosures different from other machine enclosures?
EDM machines, particularly sinker EDM, use flammable dielectric fluids and produce fumes during operation. That means fire safety and fume extraction are bigger priorities than they would be for a standard CNC enclosure. Wire EDM machines have different needs since they use water-based dielectric, but temperature and contamination control are still important.
Can an EDM enclosure be installed around machines that are already in place?
Yes, absolutely. Modular panels are designed to be assembled around existing equipment without requiring you to move the machine or shut down for an extended period.
Do EDM enclosures require special ventilation?
It depends on the machine. Sinker EDM machines produce fumes from the dielectric oil that should be extracted. Wire EDM machines produce less in the way of fumes, but ventilation can still help improve air quality and temperature inside the enclosure.
